2-Vessel Craft Beer Brewhouse System

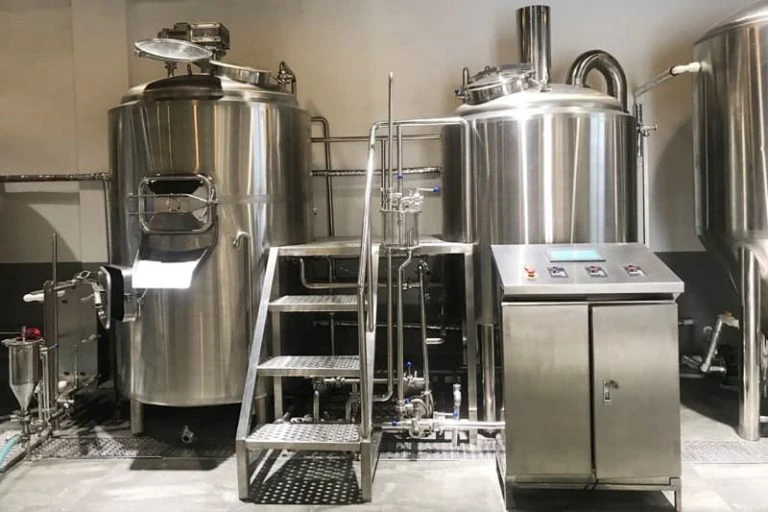

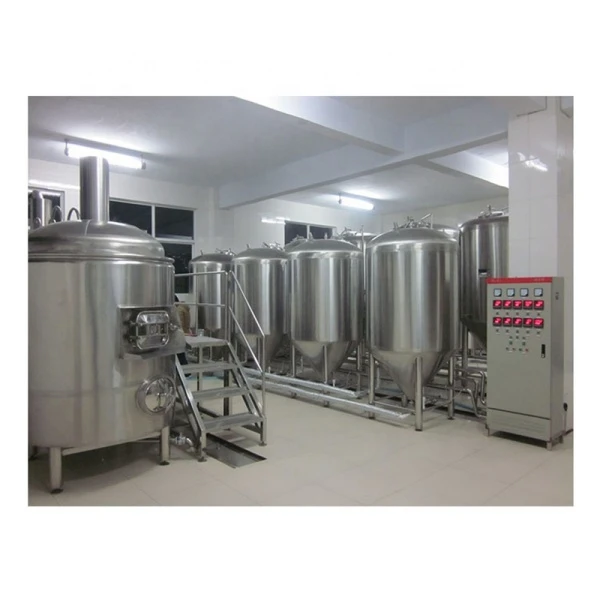

The equipment shown in the picture is a typical two-vessel beer brewhouse, which completes the four processes of mashing, lautering, boiling and whirlpooling with only two vessels. Compared with multi-vessel combinations, two-vessel brewhouses are more cost-effective. The two vessels are connected by a brewhouse platform, featuring a compact design and a small footprint. They have lower requirements for site conditions such as floor height and area. The operation is relatively simple and labor-saving, as it can be operated by just 1 to 2 people. With fewer tanks, heat loss is reduced, resulting in lower steam and power consumption. The system is also flexible in process and supports a variety of craft beer brewing techniques. In addition, cleaning is generally convenient, usually using CIP (Clean-in-Place) systems. For 50L or 100L systems, mobile CIP carts are often equipped, which can be easily moved to the tanks that need cleaning.
Feature and Structure of Brewhouse System
1. The tank is made of 304 stainless steel, which meets food-grade hygiene standards. Its exterior is usually finished with brushed oil film or mirror polishing. The tank has a cylindrical shape with dished heads on both ends and is equipped with insulation layers.
2. Inside the tank, there are a milled screen plate, raking blades, 360° cleaning spray balls, a liquid level sensor, and other standard parts.
3. A variable-frequency motor and reducer are installed on the top of the tank, allowing flexible speed control during stirring. The tank is fully welded without gaps to ensure no leakage and maintain safety and hygiene. It also has reserved sanitary quick-fit connections for exhaust valves, sensors, hop feeders, and other equipment, plus a quick-opening manhole for easy daily inspection and maintenance.
Application & Suitable Users
This 2-vessel microbrewery system is widely used in small to medium-sized craft beer production scenarios. It is particularly suitable for startup breweries, brewpubs, hotel breweries, taprooms, and craft beer workshops with limited space and budget.
It is also an ideal choice for entrepreneurs entering the craft beer industry, as well as existing breweries planning to expand their production lines in a cost-effective way. With flexible configuration and stable performance, the system can meet daily brewing needs while supporting consistent beer quality for both on-site sales and small-scale distribution.
Whether used for producing lagers, ales, IPAs, stouts, or other craft beer styles, this brewing equipment provides reliable operation and easy maintenance, helping brewers focus on recipe development and market growth.
shih

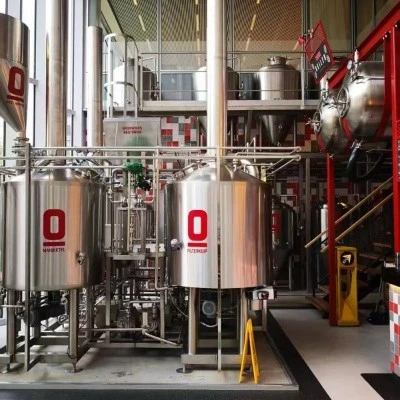

Our Cases
Customization & After-Sales Support
1. Customization
We understand that every brewery has unique space, capacity, and brewing process requirements, so our 2-vessel brewhouse systems are fully customizable to fit your specific needs.
You can choose from flexible configurations, including different heating sources (steam, electric, or gas), tank insulation options, control system upgrades (semi-automatic to fully automatic PLC control), and additional auxiliary equipment such as CIP cleaning systems, yeast propagation tanks, and wort chillers. We also offer tailored layout designs to maximize your workshop space and streamline your brewing workflow.
Whether you need a compact 500L system for a brewpub or a scaled-up 1000L setup for commercial production, our engineering team will work with you to design a solution that matches your production goals and budget.
2. After-Sales Support
We provide comprehensive after-sales support to ensure your brewhouse runs smoothly for years to come. Our service includes:
On-site installation & commissioning: Our professional technicians will guide you through the entire installation process, test the system, and train your team on operation and maintenance.
Lifetime technical support: We offer online technical assistance to resolve any operational issues quickly, minimizing downtime for your brewery.
Spare parts supply: We maintain a full stock of original spare parts, ensuring fast delivery for any replacement needs.
Regular maintenance guidance: We provide detailed maintenance manuals and regular check-up reminders to help you extend the service life of your equipment.
Our goal is to be your long-term partner in craft beer production, not just a one-time equipment supplier.
Technical Specification
| Parameter | Specification |
|---|---|
| System Type | 2-Vessel Combined Brewhouse |
| Typical Configuration 1 | Mash/Boiling vessel + Lauter/Whirlpool vessel |
| Typical Configuration 2 | Mash/Lauter vessel + Boiling/Whirlpool vessel |
| Typical Configuration 3 | Independent Lauter vessel + Combined Mash-Boiling-Whirlpool vessel |
| Design Capacity | 500L – 1000L per batch |
| Material | Food-grade SUS304 / 316L Stainless Steel |
| Tank Structure | Inner cylinder + jacket + insulation layer |
| Heating Mode | Steam / Electric / Gas (optional) |
| Control System | PLC automatic control with touch screen |
| Agitator | Variable frequency adjustable speed |
| Lauter System | Stainless steel false bottom |
| Whirlpool System | Built-in tangential whirlpool channel |
| Surface Finish | Internal mirror polished, external brushed |
| Insulation | Polyurethane foam insulation |
| Design Pressure | 0.3 MPa |
| Application | Brewpub, small & medium craft brewery, on-site brewing |
Our Advanced Manufacturing Equipment & Process
Uncoiling and Cutting Line
Our CNC punching machine ensures high-precision, consistent processing of standardized bolt holes, mounting brackets, and custom component forming for brewhouse tanks. It eliminates manual errors, guarantees uniform hole positions and sizes, and significantly improves production efficiency for large-batch tank body and head manufacturing. This equipment is critical for ensuring the structural integrity and assembly accuracy of every 2-vessel brewhouse system

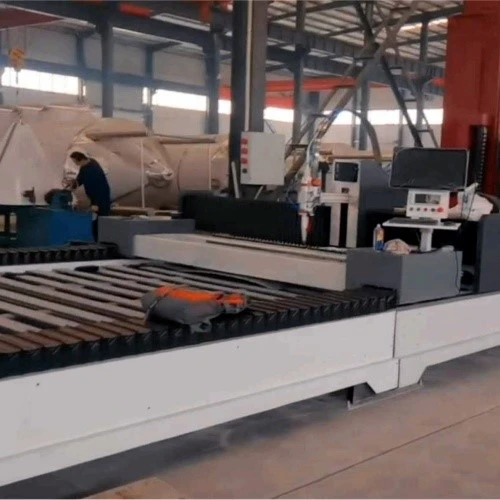

Fully Automatic Laser Welding Machine
Our fully automatic laser welding machine delivers ultra-high precision, deep-penetration welding with minimal thermal distortion, ideal for thin-sheet stainless steel joining and precision component assembly in brewhouse tanks. It is used for welding internal tank accessories such as CIP spray ball branches, temperature sensor ports, and baffle plates, ensuring 100% sanitary, leak-proof welds that meet food-grade brewing standards. The automated process ensures consistent weld quality across every production batch.

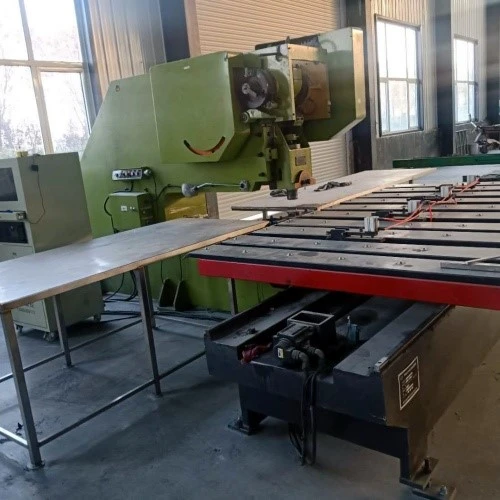

CNC Punching Machine
Our CNC punching machine delivers high-precision, repeatable processing of standardized bolt holes, mounting brackets, and custom components for brewhouse tanks. It eliminates manual errors, guarantees uniform hole positions and sizes, and significantly improves production efficiency, ensuring the structural integrity and assembly accuracy of every 2-vessel brewhouse system.
Why Quality Matters for Brewing Equipment
The quality of brewing equipment directly affects beer flavor, fermentation stability, sanitation safety, and long-term operating costs.Low-quality tanks and poor welding can lead to leakage, bacterial contamination, inconsistent temperature control, and even production downtime - all of which bring huge risks to a brewery.
Key factors that determine brewing equipment quality:
Sanitary Structure & Polishing: Beer wort is highly sensitive to bacteria. Dead corners, rough welds, or unpolished surfaces can easily trap residues and cause contamination. All our tanks use mirror-polished interiors and crevice-free design to meet food-grade hygiene requirements.
Welding Quality & Pressure Resistance: Tanks undergo repeated heating, cooling, and pressure changes. Professional automated welding ensures airtightness, pressure resistance, and long service life, avoiding cracks or leaks after years of use.
Precision Temperature Control: Mashing, boiling, and fermentation require stable temperature control. Our jacket design, insulation layer, and sensor layout ensure even heat distribution, which is essential for consistent beer quality batch after batch.
Stable & Easy Operation: A well-designed system reduces operational difficulty and labor costs. Rational pipeline layout, user-friendly control panels, and reliable components make daily production smoother and more efficient.
By strictly controlling material, processing, welding, and polishing standards, we help breweries avoid hidden troubles and ensure stable, efficient, and safe beer production.
FAQ
1. Can this 2-vessel system work with different beer recipes?
Yes. It supports multiple mashing methods including step mashing, infusion mashing, and decoction mashing. You can set temperature, time, and stirring speed freely on the PLC panel, making it suitable for ales, lagers, IPAs, stouts, and most craft beer styles.
2. How much beer can I actually produce per day with 500L / 1000L?
Under normal working hours (8–10 hours), you can run 2 to 3 batches a day.
500L system: 1000–1500L per day
1000L system: 2000–3000L per dayActual output depends on your heating speed, cooling efficiency, and labor schedule.
3. Can I choose different 2-vessel combinations?
Yes. We offer several standard setups:
Mash/Lauter + Boiling/Whirlpool
Mash/Boiling + Lauter/Whirlpool
Independent lauter tank + combined mash-boil-whirlpool tankWe can also customize layout based on your workshop size and height.
4. Which heating type is better for my project?
Steam: highest efficiency, preferred for commercial breweries
Electric: clean and easy to install, no boiler needed
Gas: lower running cost, good where gas is cheapWe recommend based on your local energy supply and budget.
5. How long does installation and commissioning take?
For standard 500–1000L systems, 7–10 working days on site, including equipment positioning, piping, wiring, testing, and basic operator training.
6. Why is your welding better than manual welding?
We use automatic laser welding for small parts and robotic welding for tank seams. This ensures consistent, leak-proof, sanitary welds without pores or dead zones, greatly extending service life and avoiding long-term leakage risks.
7. Can this system match my existing fermentation tanks?
Yes. We can adjust pipe dimensions, control logic, pump parameters, and interfaces to connect with your existing fermenters, cooling system, or CIP unit. Just share your current equipment layout.
8. What should I prepare before the equipment arrives?
You need a leveled floor, proper power supply, water/drain connections, and compressed air (if using pneumatic valves). We will provide a detailed site preparation drawing before production to avoid delays.
EXHIBITION SHOW
Ati-shake and high
We regularly participate in international brewing industry exhibitions to communicate with customers face-to-face, showcase our latest 2-vessel brewhouse systems, and share professional brewing solutions.
These on-site photos show our equipment display, technical communication, and project discussions with global brewery clients.
