The design of the whole system is special and can be customized according to the different raw gas components of the user. This ensures product functionality while minimizing equipment investment and operating energy consumption. Simple equipment, small footprint, easy to install. The control system adopts distributed control system (DCS system), which is easy to operate and can realize 24 hours continuous operation without personnel on duty. The carbon dioxide contact parts of the whole equipment are made of stainless steel material, which is safe and stable.
Our carbon dioxide recovery process is designed to obtain high-purity carbon dioxide for all industrial and food-grade applications and can be adapted to customer requirements. Recovery systems are special and are used to store liquids and gases under high pressure. Fully automated recovery systems are designed to recover CO2 gas and have the potential to process large amounts of CO2 per hour.

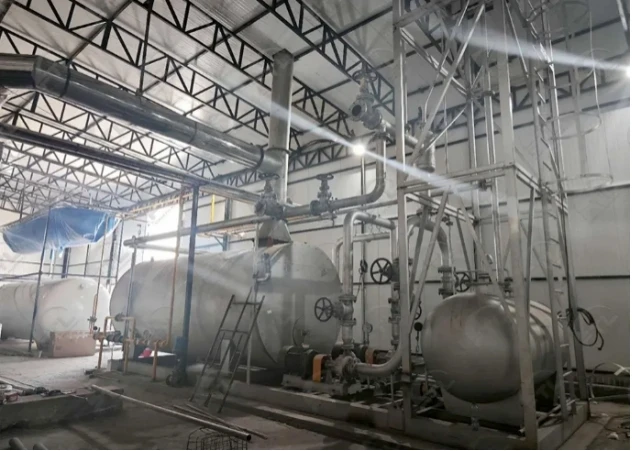

The carbon dioxide recovery unit is constructed using high-grade stainless steel to ensure corrosion resistance and increased strength.
Features
Meet international food grade quality standards
SUS304
Fully automatic
Compact design
Automatic trap
Low maintenance and operating costs
Easy to install
High strength cast iron crankcase
V-belt drive screen prints out status and alerts
The PLC system is used to control and monitor the operation of the system
Specification
|
Plant Capacity |
Power |
Make Up Water |
Liquid Co2 |
Cooling Water |
|||
|
Kg/Hr. |
KW |
HP |
M3/Hr. |
Gal/Min |
In Metric Ton |
M3/Hr |
Gal/Min |
|
100 |
33.5 |
44.9 |
0.4 |
1.76 |
15 |
7 |
30.8 |
|
250 |
83.7 |
112.3 |
1 |
4.4 |
25 |
17.5 |
77 |
|
500 |
167.5 |
22.1 6 |
2 |
8.8 |
50 |
30 |
132.1 |
|
750 |
251.2 |
336.9 |
5.9 |
13.2 |
100 |
45 |
198.2 |
|
1000 |
334.9 |
449.2 |
7.9 |
17.6 |
110 |
60 |
264.2 |
|
1500 |
502.4 |
673.8 |
6 |
26.5 |
150 |
90 |
396.3 |
|
2000 |
669.9 |
898.4 |
8 |
35.3 |
200 |
120 |
538.4 |
|
* Larger Capacities are available on request as per customer requirement. |
|||||||
